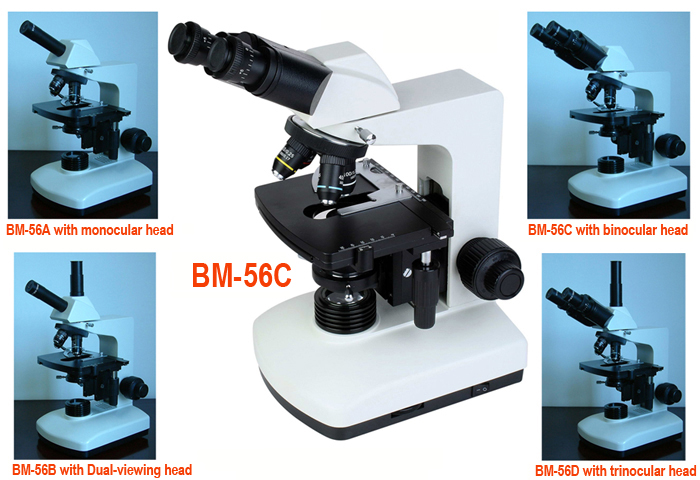

BM-56 Series Biological Microscope



High transmission optical system, combined base and arm design and wide range of accessories

make it as ideal instrument for the biology, bacteriology, histology, immunology and pharmacology.





Specification



Parts

Specification

BM-56A BM-56B BM-56C BM-56D

Viewing Head

Monocular head, 30ºinclined, 360ºrotating

Yes



Dual Viewing head, 30ºinclined, 360ºrotating



Yes

Binocular head,  30ºinclined, 360ºrotating

    Yes

Trinocular head,  30ºinclined, 360ºrotating

      Yes

Eyepiece

Wide-field eyepiece WF10X-18mm

Yes

Yes

Yes

Yes
    Wide-field eyepiece WF15X-13mm
    Wide-field eyepiece WF20X-11mm

Nosepiece

Quadruple nosepiece with positive click stopper

Yes

Yes Yes Yes
    Triple nosepiece with positive click stopper

Objective

DIN achromatic objective 4X/NA0.10

Yes

Yes Yes Yes

DIN achromatic objective 10X/NA0.25

Yes

Yes Yes Yes

DIN achromatic objective 40XR/NA0.65

Yes

Yes Yes Yes

DIN achromatic objective 60XR/NA0.85



DIN achromatic objective 100XR(oil)/NA1.25

Yes

Yes Yes Yes

Stage

Built-in mechanical stage 155mm X 142mm, moving range 50mm X 76 mm, controlled by coaxial knobs at low position

Yes

Yes Yes Yes

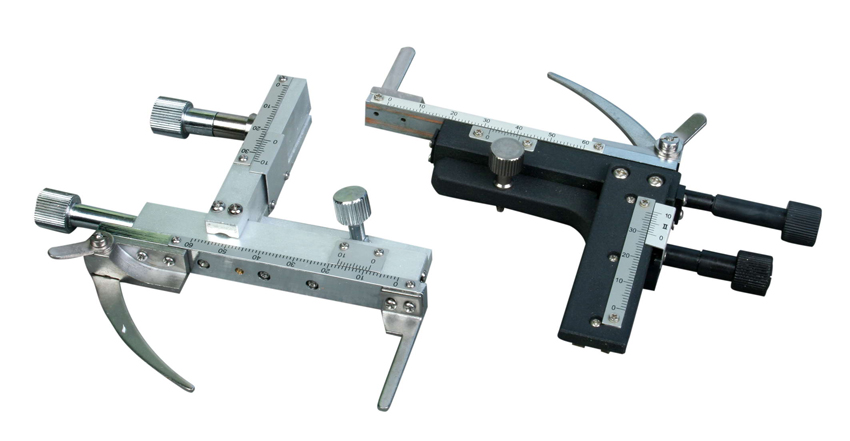

Movable specimen holder

Yes

Yes Yes Yes

Condenser

N.A.1.25 Abbe condenser on rack & pinion, with iris diaphragm, filters and holder

Yes

Yes Yes Yes

Focusing

Coaxial focusing system with built-in tension adjustment and focus stop for preventing damage to slides and objectives

Yes

Yes Yes Yes

Power

Electrical illuminator with a halogen bulb 20W/6V, main power input: 85V-230V

Yes

Yes Yes Yes

Packing

Each set in a foam in a carton, than in a master carton

Yes

Yes Yes Yes

Wooden case with lock & keys



Aluminium-Alloy Instruments Case



Accessories

Dust cover, Eyecups & Immersion Oil 60ml/bot

Yes

Yes Yes Yes

Option

Phase contrast set



Dark field condenser ( dry or wet)



Simple polarizing



Photoset for microscope



Video camera adaptor (C-mount) for microscope



Infinite Achromatic Objective and Plan Achromatic Objective



HDCE Digital Camera Eyepiece for Microscope



LCD-20 digital microscope



MDCE Digital Camera Eyepiece



MVE-10 Video Eyepeice for Microscope
