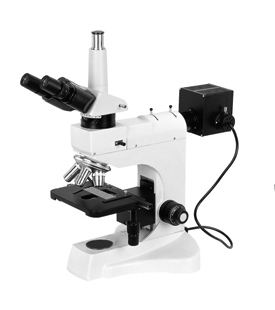

Up-right Metallurgical Microscope

Model: MMB-1

　

Metallurgical microscope is widely used for metallurgical, mineral identification and crystal,

integrated circuit examination and research. It is available to be supplied with transmitted illumination,

imaging and viewing system and accessories as a biological microscope for medical institute use.

Specification: No. MMB-1

Up-right Metallurgical Microscope

  • Viewing Head: Trinocular Head, Inclined at 30＜,Vertical photo/video port (100%-0% or 20%-80%)

  • Eyepiece: WF10X/18 with 0.1mm micrometer and cross hair

  • Nosepiece: Quintuple nosepiece

  •                       (3 holes for bright field objective use,2 holes for dark field objective use)

  • Objective: Infinitive Plan Achromatic Objective 4X、10X、20X、40X、80X

  • Polarization System: Built-in polarizer and Analyzer

  • Bright/Dark Viewing Field System: Built-in Conversion Slide for Bright/dark Field Illumination

  • Diaphragm: Epi-illuminator with Iris Aperture Diaphragm and Iris Field Diaphragm

  • Stage: Double Layer Mechanical Stage, Size 185X142mm

  • Illumination: Lamp Center adjustable, T-H lamp 12V50W, Brightness adjustable

Option:

  • Eyepiece WF8X/18, WF12.5X/18.5

  • Photo attachment

  • 1X or 0.5X Video attachment

  • Specimen Presser
