Industry

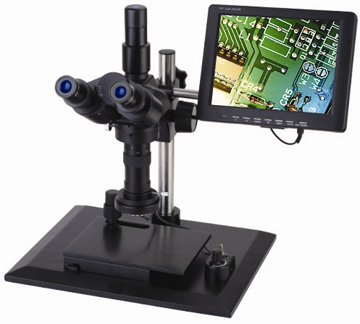

Video Microscope
Model: SZM45-IM2
Specification
| |
|
Parts |
Standard |
SZM45-IM2 |
|
Viewing Head |
Tinocular head of articulated type |
yes |
|
Zoom body |
0.7X~4.5X zoom range |
yes |
|
Eyepiece |
WF10X-18mm with eyepiece cover |
yes |
|
Objective |
1X |
yes |
|
CCD Eyepiece |
0.5X |
yes |
|
AM35 Camera |
AV Output |
yes |
|
8"LCD display screen |
AV input/ VGA input, with cross, multi-language |
yes |
|
illumination |
LED ring lamp, adjustable brightness |
yes |
|
LCD display screen stand |
360＜ adjustable |
yes |
|
Mobile stage |
Stage size: 135X175mm |
for option |
|
Stander |
Base size: (L)325 x (W)265 x (H)290 |
yes |
|
Mounting holes size for focus arm: Φ45/Φ49 |
yes |
|
|
| |
|

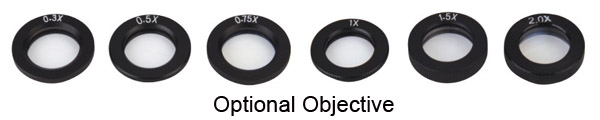

Objective |

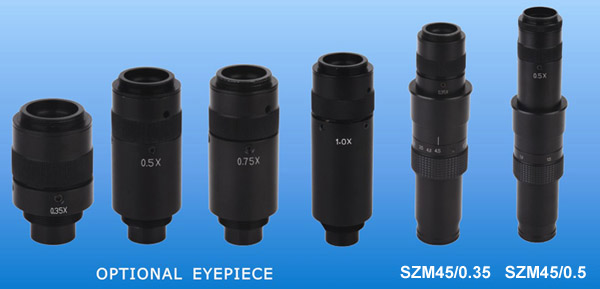

CCD Eyepiece |
Eyepiece |
|
0.5X |
|
0.5X |
Video
Magnification |
5.9X-38.1X |
Visual Magnification |
3.5X-22.5X |
10X |
| Field
of video (mm) |
Φ34.3-Φ5.3 |
Field
of visual |
Φ51.4-Φ8 |
| Work
distance (mm) |
198 |
|
0.75X |
Video
Magnification |
8.9X-57.2X |
Visual Magnification |
5.3X-33.8X |
| Field
of video (mm) |
Φ22.9-Φ3.6 |
Field
of visual |
Φ34.2-Φ5.3 |
| Work
distance (mm) |
131 |
|
1X |
Video
Magnification |
11.9X-76.2X |
Visual Magnification |
7X-45X |
| Field
of video (mm) |
Φ17.1-Φ2.7 |
Field
of visual |
Φ25.7-Φ4 |
| Work
distance (mm) |
96 |
|
1.5X |
Video
Magnification |
17.8X-114.3X |
Visual Magnification |
10.5X-67.5X |
| Field
of video (mm) |
Φ11.4-Φ1.8 |
Field
of visual |
Φ17.1-Φ2.7 |
| Work
distance (mm) |
63 |
|
2X |
Video
Magnification |
23.7X-152.4X |
Visual Magnification |
14X-90X |
| Field
of video (mm) |
Φ8.6-Φ1.3 |
Field
of visual |
Φ12.9-Φ3 |
| Work
distance (mm) |
46 |
|
|
 |
