Series
Two-gear Stereo Microscope
|
|
Feature:
-
45＜ inclined
binocular/trinocular head, 360＜ rotatable. -
The inter-pupillary
distance adjustable between 55-75mm; diopter adjustment in the
left eyepiece tube with adjustment range ＼5mm. -
Wide field, high-eyepoint eyepiece WF10X/20mm, Optional
WF15X/15mm WF20X/10mm eyepiece. -
Turret objective 2X/4X, 1X/2X and 1X/3X for option. -
Standard Magnification: 10X-80X. Magnification range can be
between 5X-160X with optional lenses. -
Working distance: 100mm, special maximum working distance is
165mm by 0.5X auxiliary objective.
|
 |
 |
 |
|

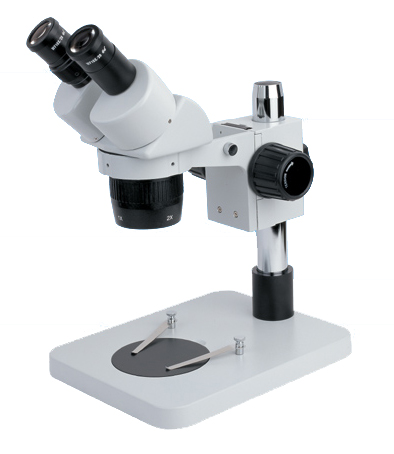

ST60-B1 |

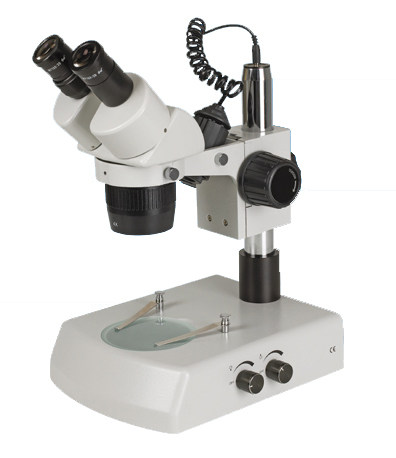

ST60-B2 |

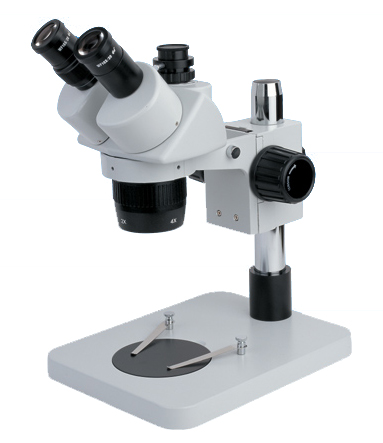

ST60-T1+ST60CTV |
Kinds
of Stands to be selected for Two-gear stereo microscopes
Optical Parameter
|
Magnification of objective |
Eyepiece |
|
WF10X20 |
WF15X15 |
WF20X10 |
|
Total magnification |
Viewing Field of specimen |
Total magnification |
Viewing Field of specimen |
Total magnification |
Viewing Field of specimen |
|
1X |
10X |
20 |
15X |
15 |
20X |
10 |
|
2X |
20X |
10 |
30X |
7.5 |
40X |
5 |
|
3X |
30X |
6.7 |
45X |
5 |
60X |
3.3 |
|
4X |
40X |
5 |
60X |
3.75 |
80X |
2.5 |
ST60 Auxiliary
Objective
|
Auxiliary objective |
Magnification |
Working distance (mm) |
|
0.5 |
0.5X |
165 |
|
1.5 |
1.5X |
45 |
|
2 |
2X |
30 |
Specification and Option
|
Specification |
Model |
|
Parts |
Description |
ST60-24B1 |
ST60-24B2 |
ST60-24B3 |
ST60-24T1 |
ST60-24T2 |
ST60-24T3 |
|
Eyepiece |
SZM-EWh10X/20mm |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
SZM-EWh10X/20rmm |
|
|
|
|
|
|
|
SZM-EWh15X/15mm |
|
|
|
|
|
|
|
SZM-EHWh20X/10mm |
|
|
|
|
|
|
|
Objective |
1X/100mm |
|
|
|
|
|
|
|
2X/100mm |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
3X/100mm |
|
|
|
|
|
|
|
4X/100mm |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Eye-cap |
|
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Head |
ST6024 binocular |
Yes |
Yes |
Yes |
|
|
|
|
ST6024TR Trinocular |
|
|
|
Yes |
Yes |
Yes |
|
Focusing Bracket |
SZM-A1 |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Stand |
SZM-ST1 |
Yes |
|
|
Yes |
|
|
|
SZM-ST2 |
|
Yes |
|
|
Yes |
|
|
SZM-ST3 |
|
|
Yes |
|
|
Yes |
|
SZ-STL1 |
|
|
|
|
|
|
|
SZ-STL2 |
|
|
|
|
|
|
|
Light |
SZM-L1 |
|
Yes |
Yes |
|
Yes |
Yes |
|
Holder |
SZ-FH1 |
|
|
|
|
|
|
|
SZ-PD1 |
|
|
|
|
|
|
|
Photo tube |
ST60-PH |
|
|
|
|
|
|
|
TV adapter |
ST60-CTV1/2 |
|
|
|
|
|
|
|
ST60-CTV1/3 |
|
|
|
|
|
|
|
Dark field |
S/ST-DK |
|
|
|
|
|
|
|
Gem clamp |
S/ST-GC |
|
|
|
|
|
|
|
Right light |
220V/110V,8W |
|
|
|
|
|
|
|
LED |
|
|
|
|
|
|
|
|
|
|
