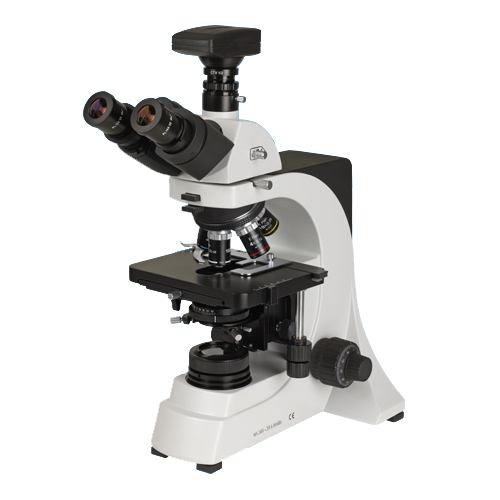

DM67 Digital Microscope

(A) Specification


Parts Specification
Objective Infinity plan achromatic objective 4X, 10X, 20X, 40XS, 100XS
Infinity plan phase contrast objective 10X, 20X, 40XS, 100XS
Eyepiece PL 10x22mm high eye-point plan eyepiece.
Head Gemel digital head with 30< inclined.
Signal Out USD2.0 port
Illuminator Built-in koehler illuminator systems.
6V/30W halogen bulb (Philips 5761), adjustable brightness
Focus Coaxial focus system, with tension adjustment, and up-limited
Coarse focus, Stage range 25mm, precision 0.002mm
Nosepiece Reversed quintuple or quadruple nosepiece
Stage 175mmx145mm mechanical stage.
75mmx50mm moving range.
Adjusting for right or left hand.
Condenser N.A.1.2/0.22 swing achromatic condenser.



(B) Digital video system specification


Image Device 1/2 interline CCD, 2.0M pixels of CMOS
Effective Pixels 1600x1200
Frame rate 10 fps at 1600x1200, 40fps at 800x600
Auto Exposure Auto/manual
White balance Auto/manual
Signal noise ratio 60dB
Input voltage USB bus power, or extemal 6VDC, 500mA
Power consumption 2.5W or less
Operating temperature 0< C to 40< C
Lens Mount C Mount
Port Type Standard USB 2.0
Mass 150g / 300g
Operating system Windows, Windows 2000, WindowsMC, Windows XP
