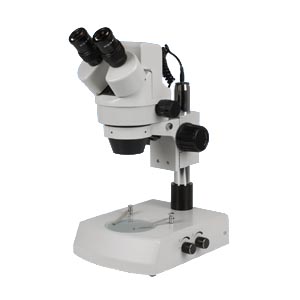

DM SZM Series Digital Stereo Microscope

The DM SZM is a multifunctional product. It adopts streamlined integrated mechanical and electrical design. It has reliable performance, innovative appearance and convenient operation. With incomparable optical performance, high resolution, large field of view, long working distance, this product is extensively applied to such domains as educational demonstration, biological anatomy, electronic industry and police observation and analysis etc.

　

　

      DMSZM Main Character:

  • Inherit all function from SZM series microscope.

  • Support scanner and digital still camera (TWAIN Standard).

  • Viewing head :45＜ inclined,360＜ rotatable binocular head.

  • Eyepiece: high-eyepoint eyepiece WF10X20mm.

  • Objective: Zoom objective magnification 0.70X-4.5X.

  • Signal :1) Analog: RCA,S-Video signal wire. 2) Digital: USB data line,RCA, S-Video signal wire.

  • Working distance: 100mm.

  • Magnification range: 7X-45X or 3.5X-180X (Use auxiliary objective).

  • Inter-pupillary rang: 55-76mm.

  • Both diopter range: ＼5mm.

　

SZM Series Stands

Model: SZMST1

Name: Pillar stand

Use: Used with SZMA1 focus arm

Pillar size: 32mm

Stage: Ø100 black and white plate

　

Model: SZMST2

Name: Pillar stand with Incident and transmitted light

Use: Used with SZMA1 focus arm

Incident light: comes with Epi-illuminator SZML1 12V/15W halogen bulb

Transmitted light: built-in illuminator system, halogen bulb 12V/15W,the brightness can adjust

Pillar size: 32mm

Stage size: Ø100 glass plate

Model: SZMST3

Name: Pillar stand with Incident and transmitted light

Use: Used with SZMA1 focus arm

Incident light: comes with Epi-illuminator SZML1 12V/15W halogen bulb

Transmitted light: built-in illuminator system, Fluorescent lamp 230V/7W,the brightness can adjust

Pillar size: 32mm

Stage size: Ø100 glass plate

　

There are Photolib3.0 photo processing software to optional.

　

　

(匯) Specification:

　

Viewing Head 45＜ inclined
Head Binocular digital head
Eyepiece WF10 X 20mm wide filed, high-eyepoint
Objective Zoom objective, magnification 0.70X-4.5X.
Magnification 7X to 90X, or 3.5X to 180X (use auxiliary objective)
Inter-pupillary rang 54 to 75mm
Both diopter range ＼5mm
Working distance 100mm
Video out C-VIDEO, S-VIDEO

　

　

　

(屈) Digital video system specification:

　

　

     Index NTSC      PAL
Pick-up Device 1/3：      1/3：
Horizontal resolution 450 TV line      450 TV line
Pixels (H)768 * (V)494      (H)712 * (V)582
Scanning system 525lines, 60field/second      625lines, 50field/second
White balance Auto white balance and hand white balance
Back light compensation Auto
Signal/Noise ratio more than 46db
Gamma characteristic 0.45
Minimum illumination 3 lux
Input voltage 12V DC(9V~14V)
Power consumption 1.85W or less

　

　

　
　 　
