Multi-Observing Biological Microscope







Specification and Option



Parts

Specification

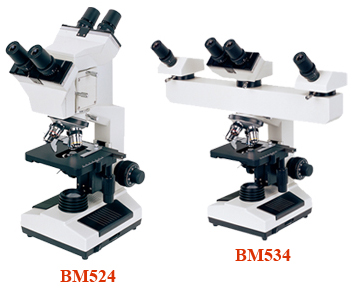

BM524

BM534

Viewing Head

Sliding Binocular Head

2Pcs

1Pc

Monocular Head



2Pcs

Eyepiece

Wide Field Eyepiece WF10X

yes

yes

Objective

Achromatic 4X、10X、40X、100X

yes

yes

Stage

Double Layer Mechanical Stage 140X140mm/75X50mm

yes

yes

Single Layer Mechanical Stage 140X140mm/75X50mm





Condenser

Abbe NA1.25 with Iris Diaphram and Filter

yes

yes

Illumination

Built-in Illumination , Halogen Lamp 110V or 220V /6V20W

yes

yes

Lamp Hosing Illumination, Halogen Lamp 110V or 220V/24V100W
