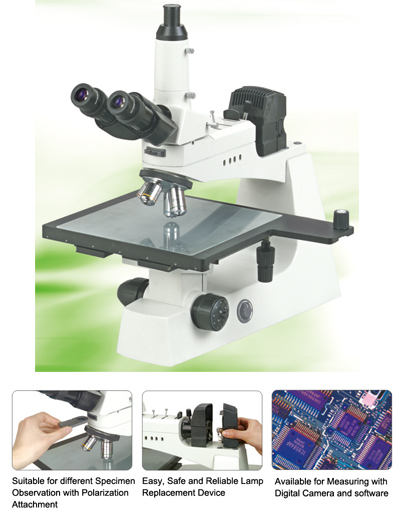

Industry Inspection Microscope



It is widely used in IT Industry for Large Area Integrate Circuit, Wafer Observation and Inspection. Excellent Optical Quality with Infinite Optical System and LWD High Magnification Objective (40X/WD3.7mm). Big Stage with Extra Large Moving Range 250mmX250mm. Stage Speedy Movement by Hand to Get Observation Point Immediately. Comfortable and Enjoyable Operation with Low and Prepositive Position Control Knob





Specification:

  • Viewing Head: Trinocular Head

  • Eyepiece: Extra Wide Field Eyepiece EW10X/20

  • Nosepiece: Quintuple nosepiece

  • Objective: Infinitive plan achromatic Objective 4X10X20X40X

  •                    Infinitive Plan Achromatic Objective 80X for option

  • Stage: Size 300mmX268mm, Movement 250mm X 250mm

  • Focusing: Coaxial Coarse and Fine Adjustment, Range 24mm

  • Illumination: 220V or 110V/6V20W Halogen Lamp, Brightness Adjustable

  • Filter: Blue, Yellow, Green and Ground Glass

Option:

  • Polarization Attachment: Analyzer and Polarizer

  • Video Adapter: Video Adapter with C Mount

  • Camera System: 1.3M Pixel CMOS Camera System, Resolution 1280X1024, 1/2"m USB2.0 Output

  • Software: Image Processing Software DN-2
