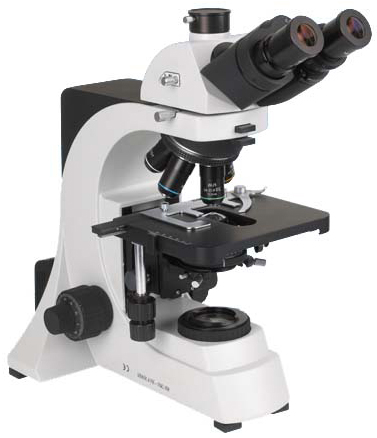

BM67 Series Clinical Biological Microscope

 BM67 Series Clinical Biological Microscope have excellent optics systems

and dependable manipulation systems,

which making clear image and handy operate.

　 　 　
　

　

Back to Homepage

 　

　

  • The Infinity Corrected Optical System design has corrected chromatic aberration on the base traditional optical system, A significant development in optical performance and versatility.

  • The Infinity Corrected Optical System has been designed to fit different accessories according to customers requirements, including dark filed, phase contrast accessories, polarizing kits, and fluorescence light etc.

  • The series microscope can be optimal integrates and maximum expandability as fully functions.

  • Shapely configuration, furthermore, the “Y” Stand ensured the stability of the microscope. The Series is handled more comfortable because of the Ergonomic design.

  • Ergonomic design has made the series more comfortable with the manner in which you working. The focusing controls and the brightness controls are greatly improved the comfort for the user.

Head & Eyepiece:

@     Gemel type of binocular head an inclination of 30° binocular head is utilized for comfort and posture management, 30° ~60° inclined trinocular head for optional.
@     PL10X high eye-point plan eyepiece, 22mmm view of field can provide wide and clearly watching space. each eyepiece with eye-cap can prevent astigmatism and protect eyepiece tens. recital for measure can be installed in eyepiece.
　

Objective & Nosepiece
@     Reversed quintuple nosepiece completed with infinity plan achromatic objective(4X,10X,20X,40X,100X) could assure fine and clearly under each times.
Stage
@     Stage Size:175 * 145mm
@     Journey: 75 * 50mm
@     Precision: 0.1mm
@     Focus: Lowness coaxial focus system

Illuminator
@     The 6V/30W halogen bulb(philips5761) koehler illuminator system, center of light adjusting.
@     Illuminator system can be seasoned with 90V~240V fluctuate of voltage. Brightness adjustment.


Condenser
@     Comes with N.A.1.2/0.22 swing achromatic condenser.

　

　

　

　

　

　

Back to Homepage

　

　

　

　

　

　

　

　

　

　

　

　

　

　

闽ICP备09016458号

 　

　

Specification and Option

　

Parts Specification BM67-1 BM67-2 BM67-3 BM67-4
Eyepiece PL10X/22mm high eye-point plan eyepiece, each with eye-cap    yes yes yes yes
PL10X high eye-point plan eyepiece with reticle   　 　 　 　
PL15X/16mm high eye-point plan eyepiece 　 　 　 　
Objective infinity plan achromatic objective 4X, 10X, 20X, 40X, 100X    yes yes 　 　
plan phase contrast objective 10X, 20X, 40X, 100X.  　 　 yes yes
Head Gemel type of binocular head,30° inclined              yes 　 yes 　
Gemel type of trinocular head, 30° inclined           　 yes 　 yes
Gemel type of binocular head, 30° ~60° inclined (Designing) 　 　 　 　
Nosepiece Reversed quintuple nosepiece        yes yes 　 　
Reversed quadruple nosepiece      　 　 yes yes
Arm Lowness coaxial focus system yes yes yes yes
Stage 175*145mm mechanical stage, adjusting for right hand yes yes yes yes
175*145mm mechanical stage, adjusting for left hand 　 　 　 　
Condenser NA1.2/0.22 swing out achromatic condenser yes yes yes yes
NA1.25 five position phase contrast condenser 　 　 　 　
Phase contrast condenser 10X 　 　 　 　
Phase contrast condenser 20X 　 　 　 　
Phase contrast condenser 40X 　 　 　 　
Phase contrast condenser 100X 　 　 　 　
Illuminator 90V~240V/6V 30W halogen bulb yes yes yes yes
Filter yellow filter (Ø45) 　 　 　 　
green filter (Ø45) 　 　 　 　
blue filter (Ø45) yes yes yes yes
filter without color(Ø45) 　 　 　 　
Photo tube PK mount adapter 　 　 　 　
3.2X photo eyepiece 　 　 　 　
TV adapter 0.5X C-mount TV adapter with focusable lens 　 　 　 　
0.35X C-mount TV adapter with focusable lens 　 　 　 　
Dark field dry dark field condenser NA0.9 　 　 　 　
Condenser Wet dark field condenser NA1.25 　 　 　 　
Polarizing Kits Polarizer (Ø45) 　 　 　 　
Polarizer wave slip 　 　 　 　
wave slip  　 　 　 　
Rotatable circular mechanical stage  　 　 　 　
