Parts |
Specification |

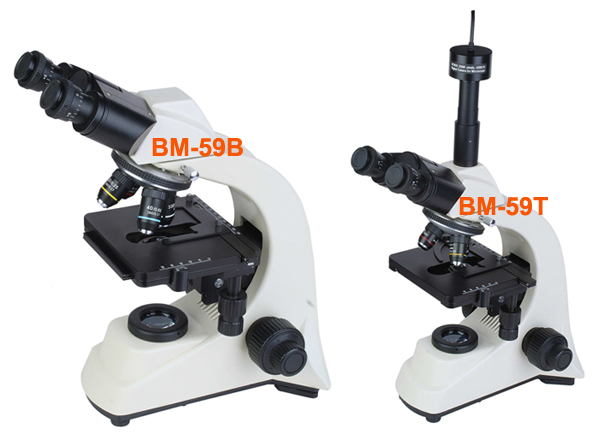

BM-59M |
BM-59D |
BM-59B |
BM-59T |
|
Viewing Head |
Monocular head, 30ºinclined,
360ºrotating |
Yes |
|
|
|
|
Dual-viewing head, 30ºinclined, 360ºrotating |
|
Yes |
|
|
|
Binocular head, 30ºinclined, 360ºrotating |
|
|
Yes |
|
|
Trinocular head, 30ºinclined, 360ºrotating |
|
|
|
Yes |
|
Eyepiece |
Wide-field eyepiece WF10X-18mm |
Yes |
Yes |
Yes |
Yes |
|
Wide-field eyepiece WF15X-13mm |
|
|
|
|
|
Wide-field eyepiece WF20X-11mm |
|
|
|
|
|
Nosepiece |
Quadruple nosepiece with positive click stopper |
Yes |
Yes |
Yes |
Yes |
|
Triple nosepiece with positive click stopper |
|
|
|
|
|
Objective |
DIN achromatic objective
4X/NA0.10、10X/NA0.25、40XR/NA0.65、100XR(oil)/NA1.25 |
Yes |
Yes |
Yes |
Yes |
|
DIN achromatic objective
60XR/NA0.85 |
|
|
|
|
|
Stage |
Built-in mechanical stage 132mm X 142mm, moving range 50mm X 76 mm,
With specimen holder, controlled by coaxial knobs at low position |
Yes |
Yes |
Yes |
Yes |
|
Condenser |
N.A.1.25 Abbe condenser on rack &
pinion, with iris diaphragm, filters and holder |
Yes |
Yes |
Yes |
Yes |
|
Focusing |
Coaxial focusing system with built-in tension adjustment and focus
stop for preventing damage to slides and objectives |
Yes |
Yes |
Yes |
Yes |
|
Power |
Electrical illuminator with a halogen bulb 20W/12V, main power
input: 85V-230V |
Yes |
Yes |
Yes |
Yes |
|
Packing |
Each set in a foam in a carton.
|
Yes |
Yes |
Yes |
Yes |
|
Wooden case with lock & keys |
|
|
|
|
|
Aluminium-Alloy
Instruments Case |
|
|
|
|
|
Accessories |
Dust
cover, Eyecups & Immersion Oil 60ml/bot |
Yes |
Yes |
Yes |
Yes |
|
Option
|
Phase contrast set |
|
|
|
|
|
Dark field condenser ( dry or wet) |
|
|
|
|
|
Simple
polarizing |
|
|
|
|
|
Photoset for microscope |
|
|
|
|
|
Video camera adaptor (C-mount) for microscope |
|
|
|
|
|
Infinite Achromatic Objective and Plan
Achromatic Objective |
|
|
|
|
|
HDCE Digital Camera Eyepiece for
Microscope |
|
|
|
|
|
LCD-20 digital
microscope |
|
|
|
|
|
MDCE Digital Camera Eyepiece |
|
|
|
|
|
MVE-10 Video
Eyepeice for Microscope |
|
|
|
|
