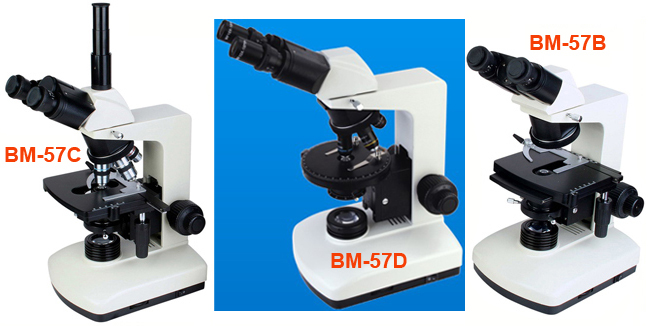

BM-57 Series Biological Microscope



High transmission optical system, combined base and arm design and wide range of accessories

make it as ideal instrument for the biology, bacteriology, histology, immunology and pharmacology.





Specification



Parts

Specification

BM-57A BM-57B BM-57C BM-57D

Viewing Head

Monocular head, 45ºinclined, 360ºrotating

Yes



Compensation Free Binocular head,  30ºinclined, 360ºrotating

  Yes   Yes

Compensation Free Trinocular head ,  30ºinclined, 360ºrotating

    Yes

Eyepiece

Wide-field eyepiece WF10X-18mm

Yes Yes

Yes

Yes

Wide-field eyepiece WF15X-13mm



Wide-field eyepiece WF20X-13mm



Analyzer

Plug-type analyser group

      Yes

Nosepiece

Reversed quadruple nosepiece

Yes

Yes Yes Yes

Reversed triple nosepiece



Objective

DIN achromatic objective 4X/NA0.10

Yes

Yes Yes Yes

DIN achromatic objective 10X/NA0.25

Yes

Yes Yes Yes

DIN achromatic objective 40XR/NA0.65

Yes

Yes Yes Yes

DIN achromatic objective 60XR/NA0.85



DIN achromatic objective 100XR(oil)/NA1.25

Yes

Yes Yes

Stage

Built-in mechanical stage 155mm X 142mm, moving range 50mm X 76 mm, With specimen holder, controlled by coaxial knobs at low position

Yes

Yes Yes

Diameter Φ 35mm 360º rotating table and Graduated in 1º increments. Minimum Resolution 6' when using venire scale, center adjustable

      Yes

Condenser

N.A.1.25 Abbe condenser on rack & pinion, with iris diaphragm, filters and holder

Yes

Yes Yes

N.A.1.25 Abbe Condenser With polarize, can rotate, take the scale

      Yes

Focusing

Coaxial focusing system with built-in tension adjustment and focus stop for preventing damage to slides and objectives

Yes

Yes Yes Yes

Power

Electrical illuminator with a halogen bulb 20W/6V, main power input: 85V-230V

Yes

Yes Yes Yes

Packing

Each set in a foam in a carton, than in a master carton

Yes

Yes

Yes

Yes

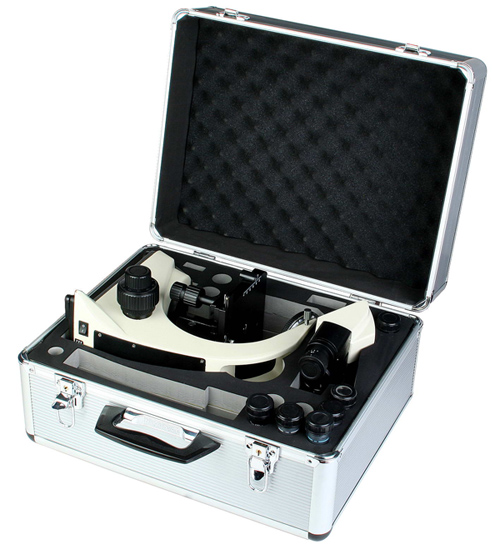

Aluminium-Alloy Instruments Case









Wooden case with lock & keys









Accessories

Dust cover, Eyecups & Immersion Oil 60ml/bot

Yes

Yes Yes Yes

Option

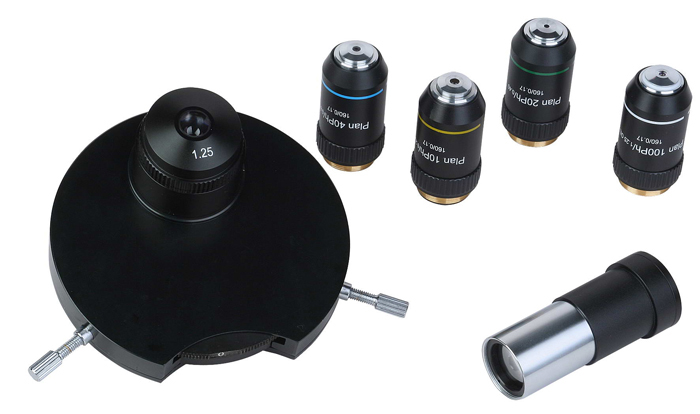

Phase contrast set



Dark field condenser ( dry or wet)



Simple polarizing

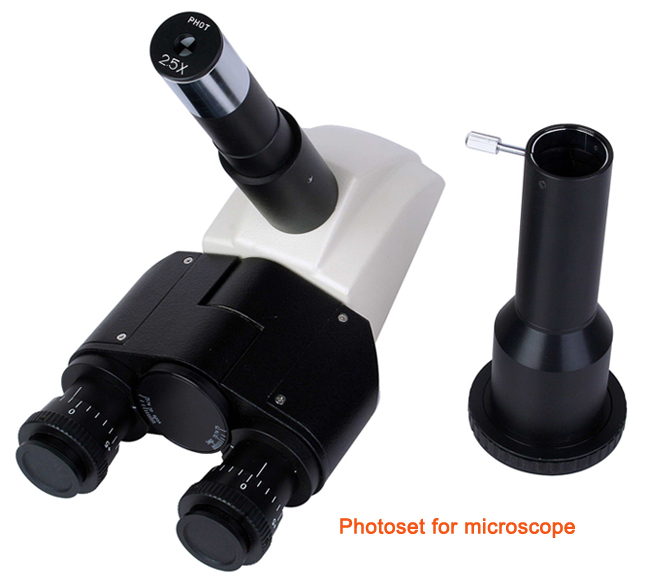

Photoset for microscope

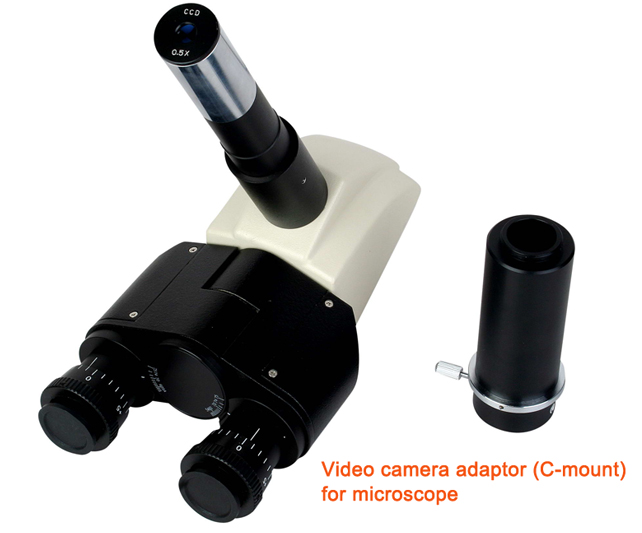

Video camera adaptor (C-mount) for microscope

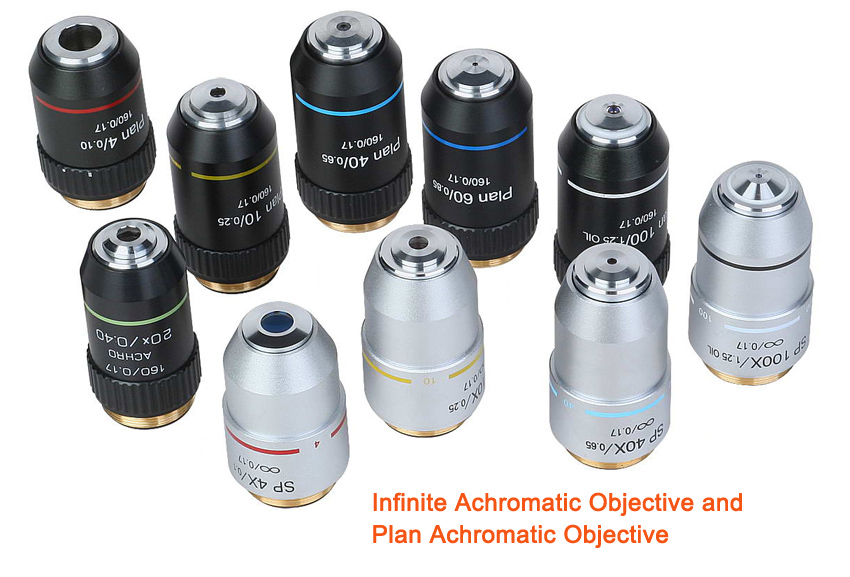

Infinite Achromatic Objective and Plan Achromatic Objective









HDCE Digital Camera Eyepiece for Microscope



LCD-20 digital microscope



MDCE Digital Camera Eyepiece



MVE-10 Video Eyepeice for Microscope
