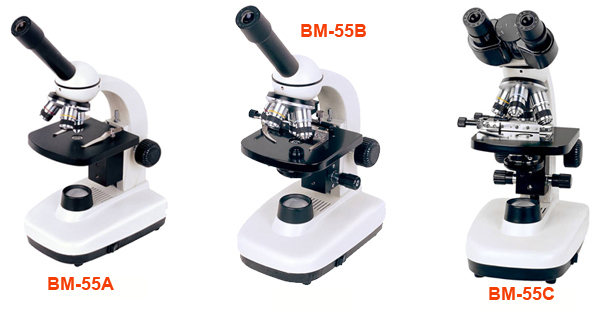

BM55 Series Biological Microscope
With the feature of modern C frame shape, comfortable operation and reliable structure,
it can be widely used in medical and sanitary
establishments, laboratories, institutes, colleges and universities.
闽ICP备09016458号
Specification and Option
| Parts | Specification | BM-55A | BM-55B | BM-55C | BM-55D | BM-55E | BM-55D |
| Viewing Head | Monocular Head (45°, 360°) | yes | yes | yes | yes | ||
| Binocular Head (30°, 360°) | yes | yes | |||||
| Eyepiece | Wide Field Eyepiece WF10X | yes | yes | yes | yes | yes | yes |
| Objective | 4X、10X、40X (35mm) | yes | |||||
| 4X、10X、40X、100X(35mm) | yes | yes | |||||
| 4X、10X、40X、100X (DIN) | yes | yes | yes | ||||
| Nosepiece | Triple Nosepiece | yes | |||||
| Quadruple Nosepiece | yes | yes | yes | yes | yes | ||
| Stage | Plain 125 X120mm | yes | |||||
| With attachable Mechanical Stage 120X120mm/60X30mm | yes | yes | yes | ||||
| Double Layer Mechanical Stage 120X120mm/60X30mm | yes | yes | |||||
| Condenser | Single Lens with Iris | yes | |||||
| Abbe NA1.25 W/ Iris, Spiral up & down | yes | yes | yes | ||||
| Abbe NA 1.25 W/Iris, Rack & Pinion Adjustment | yes | yes | |||||
| Illumination | Fluorescent Lamp 7W，220V or 110V | yes | yes | yes | |||
| Halogen Lamp 220V or 110V / 6V 15W, Brightness Adjustable | yes | yes | yes | ||||
|
Options |
Mirror, Demonstration |
option |
option |
option |
option |
option |
option |
|
