Parts |
Specification |

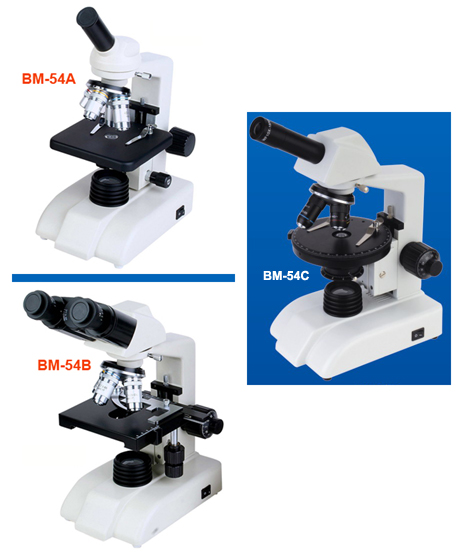

BM-54A |
BM-54B |
BM-54C |
|
Viewing Head |
Monocular head, 45ºinclined,
360ºrotating |
Yes |
|
Yes |
|
Binocular head, 45ºinclined, 360ºrotating |
|
Yes |
|
|
Eyepiece |
Wide-field eyepiece WF10X-18mm |
Yes |
Yes |
Yes |
|
Wide-field eyepiece WF10X with
pointer |
|
|
|
|
Eyepiece WF16X-13mm |
|
|
|
|
Eyepiece WF20X-11mm |
|
|
|
|
Eyepiece WF10X with
reticule focusable |
|
|
|
|
Nosepiece |
Triple nosepiece with positive
click stopper |
Yes |
|
Yes |
|
Quadruple nosepiece with positive click stopper |
|
Yes |
|
|
Analyzer |
built-in analyser group |
|
|
yes |
|
Objective |
DIN achromatic objective
4XR / NA0.10 |
Yes |
Yes |
Yes |
|
DIN achromatic objective
10XR / NA0.25 |
Yes |
Yes |
Yes |
|
DIN achromatic objective
40XR / NA0.65 (spring loaded) |
Yes |
Yes |
Yes |
|
DIN achromatic objective
60XR / NA0.85 (spring loaded) |
|
|
|
|
DIN achromatic objective
100XR (oil) / NA1.25 (spring loaded) |
|
Yes |
|
|
Stage |
Metal stage 127mmX132mm with
paired clips |
Yes |
|
|
|
Built-in mechanical stage 125mmX130mm
with specimen holder, controlled by coaxial knobs at low position |
|
Yes |
|
|
Diameter
Φ135mm
360ºrotating and graduated in 1º
Increments, Minimum Resolutions when using venire scale, center
adjustable |
|
|
Yes |
|
Condenser |
single condenser with Iris
diaphragm |
Yes |
|
|
|
NA1.25Abbe condenser with Iris
Diaphragm |
|
Yes |
|
|
N.A.1.25 Abbe condenser with
polarize, can rotate, take the scale |
|
|
Yes |
|
Focusing |
Separate fine & coarse focusing system
by rack and pinion |
Yes |
|
|
|
Coaxial fine & coarse focusing.
with safe rack stopper |
|
Yes |
Yes |
|
Illuminator |
5W Fluorescent bulb |
Yes |
Yes |
|
|
LED lamps, Ni-Cd rechargeable
battery pack, and AC/CD adaptor. The brightness is adjustable. |
|
|
|
|
Halogen bulb 6V/20W. AC85-230V.brightness is adjustable |
|
|
Yes |
|
Packing |
Each set in a foam in an inner
carton, 4 inner cartons in a master carton. |
Yes |
Yes |
Yes |
|
Aluminium-Alloy
Instruments Case |
|
|
|
|
Wooden case with locks & keys |
|
|
|
|
Option |
Movable specimen
holder (in black or in silver for
option) |
|
|
|
|
Photoset for microscope |
|
|
|
|
Video camera adaptor (C-mount) for microscope |
|
|
|
|
Infinite Achromatic Objective and Plan
Achromatic Objective |
|
|
|
|
HDCE Digital Camera Eyepiece for
Microscope |
|
|
|
|
LCD-20 digital
microscope |
|
|
|
|
MDCE Digital Camera Eyepiece |
|
|
|
|
MVE-10 Video
Eyepeice for Microscope |
|
|
|
