Parts |
Specification |

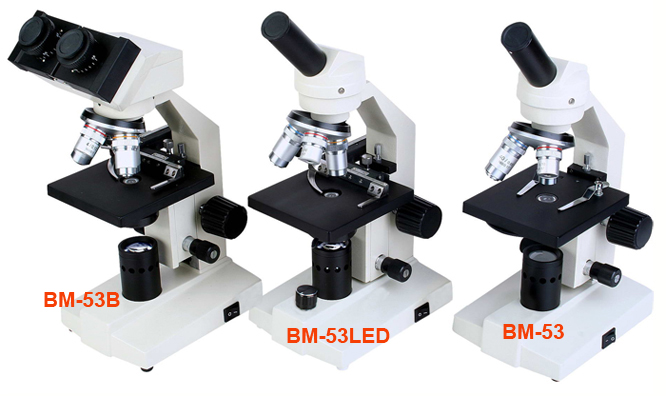

BM-53 |
BM-53LED |
BM-53B |
|
Viewing Head |
Monocular head, 45ºinclined,
360ºrotating |
Yes |
Yes |
|
|
Binocular head, 45ºinclined,
360ºrotating |
|
|
Yes |
|
Eyepiece |
Wide-field eyepiece WF10X with
pointer |
Yes |
Yes |
|
|
Wide-field eyepiece WF10X-18mm |
|
|
Yes |
|
Eyepiece WF16X-13mm |
|
|
|
|
Eyepiece WF20X-11mm |
|
|
|
|
Eyepiece WF10X with reticule
focusable |
|
|
|
|
Nosepiece |
Triple nosepiece with positive
click stopper |
Yes |
Yes |
|
|
Quadruple nosepiece with positive
click stopper |
|
|
Yes |
|
Objective |
DIN achromatic objective 4XR /
NA0.10 |
Yes |
Yes |
Yes |
|
DIN achromatic objective 10XR /
NA0.25 |
Yes |
Yes |
Yes |
|
DIN achromatic objective 20XR /
NA0.40 (spring loaded) |
|
|
|
|
DIN achromatic objective 40XR /
NA0.65 (spring loaded) |
Yes |
Yes |
Yes |
|
DIN achromatic objective 60XR /
NA0.85 (spring loaded) |
|
|
|
|
DIN achromatic objective 100XR
(oil) / NA1.25 (spring loaded) |
|
|
Yes |
|
Stage |
Plain stage with slide clips (
Stage size: 110mm X 120mm ) |
Yes |
|
|
|
Metal stage 110mm X 120mm with
movable specimen holder |
|
Yes |
Yes |
|
Diaphragm |
Disc diaphragm |
Yes |
Yes |
|
|
Iris diaphragm |
|
|
Yes |
|
Condenser |
NA0.65 single lens condenser with
Disc diaphragm |
Yes |
|
|
|
N.A.1.25 Abbe condenser of spiral
type, iris diaphragm with filter holder |
|
Yes |
Yes |
|
Focusing |
Separate fine & coarse focusing
system by rack and pinion |
Yes |
Yes |
|
|
Power |
an Incandescent Lamp 230V/20W or
115V/20W |
Yes |
|
Yes |
|
LED lamps, Ni-Cd rechargeable
battery pack, and AC/CD adaptor. The brightness is adjustable. |
|
Yes |
|
|
Halogen bulb 10W/12V. The
brightness is adjustable |
|
|
|
|
Packing |
Each set in a foam in an inner
carton, 4 inner cartons in a master carton. |
Yes |
Yes |
Yes |
|
Aluminium-Alloy Instruments Case |
|
|
|
|
Wooden case with locks & keys |
|
|
|
|
Option |
Movable specimen holder (in black or in
silver for option) |
|
|
|
|
Photoset for microscope |
|
|
|
|
Video camera adaptor (C-mount) for microscope |
|
|
|
|
Infinite Achromatic Objective and Plan Achromatic Objective |
|
|
|
|
HDCE Digital Camera Eyepiece for
Microscope |
|
|
|
|
LCD-20 digital microscope |
|
|
|
|
MDCE Digital Camera Eyepiece |
|
|
|
|
MVE-10 Video Eyepeice for Microscope |
|
|
|
